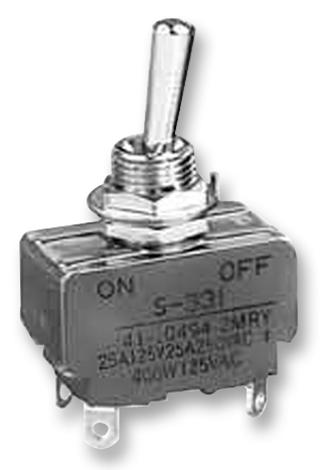

NKK SWITCHES - S333 - Toggle Switch, On-Off-On, DPDT, Non Illuminated, S, Panel Mount, 25 A
- Switch Operation: On-Off-On
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: Series S Series
- Contact Current Max: 25A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 125V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 30V
- SVHC: Lead (15-Jan-2019)
- Actuation Type: Lever
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Bush Thread Length: 12mm
- Contact Current @ Contact Voltage AC Max: 25A
- Contact Current @ Contact Voltage DC Max: 25A
- Contact Current AC Max: 25A
- Contact Current DC Max: 25A
- Contact Resistance Max: 10mohm
- Contact Voltage AC Max: 250VAC
- Contact Voltage DC Max: 30V
- Dielectric Strength VDC: 2000VAC
- External Depth: 19mm
- External Width: 33.2mm
- Height: 25.1mm
- Inductive Current Rating: 10A
- Insulation Resistance: 1000Mohm
- Insulation Resistance Voltage: 500VDC
- Lever Length: 17.5mm
- Material: Melamine phenol
- No. of Electrical Operations: 25000
- No. of Mechanical Operations: 50000
- No. of Positions: 3Ways
- Panel Cutout Diameter: 12.5mm
