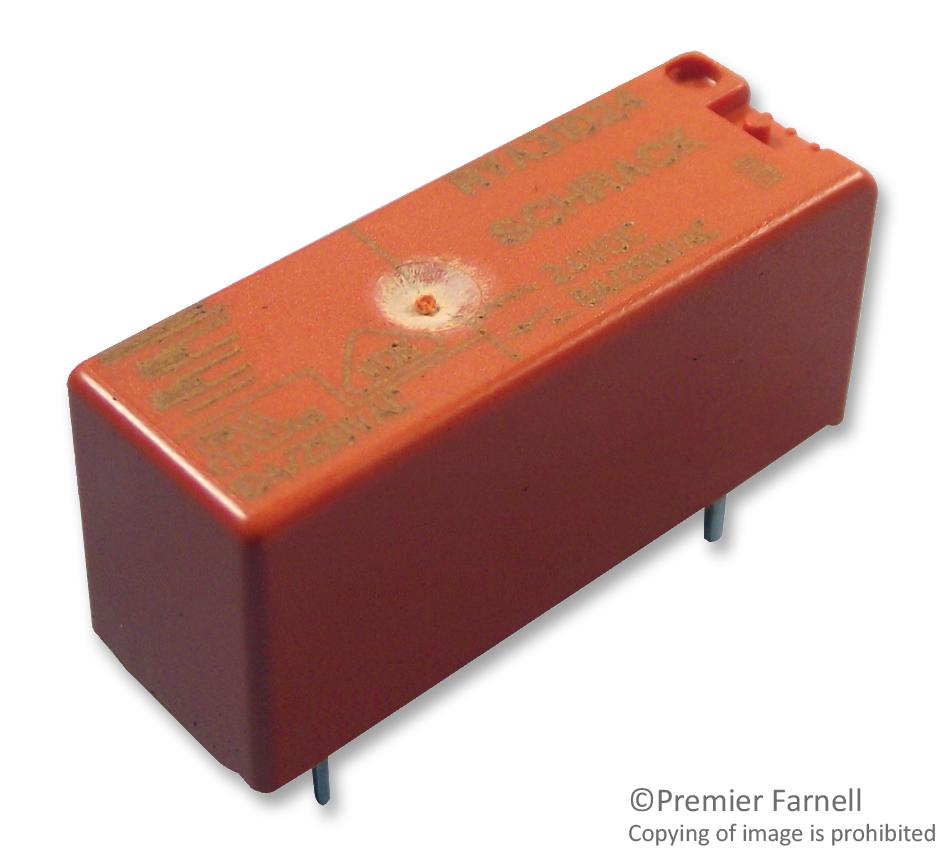

SCHRACK - TE CONNECTIVITY - 1-1393224-2 - General Purpose Relay, RYII Series, Power, Non Latching, SPST-NO, 24 VDC, 8 A
- Contact Configuration: SPST-NO
- Coil Voltage: 24VDC
- Contact Current: 8A
- Product Range: RYII Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 2.35kohm
- Approval Bodies: VDE
- Approval Category: UL Recognised
- Approvals & Standards: VDE
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 8A
- Contact Current Max: 8A
- Contact Voltage AC Max: 400V
- Contact Voltage AC Nom: 240V
- Current Rating: 8A
- DC Coil Power: 200mW
- Dielectric Voltage Coil to Contact: 5000VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 10.1mm
- External Height: 12.3mm
- External Length / Height: 12.3mm
- External Width: 28.5mm
- Lead Spacing: 5mm
- Must Actuate Voltage: 16.8VDC
- No. of Pins: 4Pins
- Nom Operating Power: 245mW
- Operating Frequency Max: 1200Hz
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 7ms
- Relay Type: Power
- Release Time: 3ms
