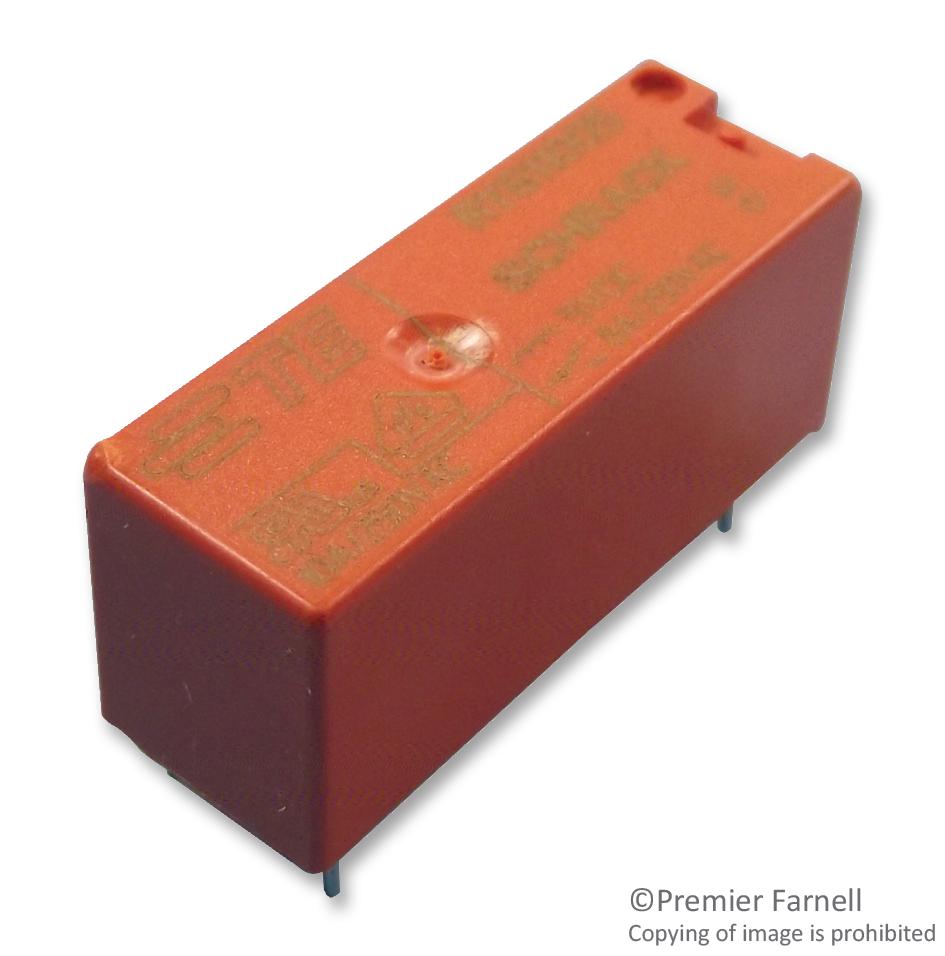

SCHRACK - TE CONNECTIVITY - 1-1393225-7 - General Purpose Relay, RYII Series, Power, Non Latching, SPDT, 5 VDC, 8 A
- Contact Configuration: SPDT
 - Coil Voltage: 5VDC
 - Contact Current: 8A
 - Product Range: RYII Series
 - Relay Mounting: Through Hole
 - Coil Type: Non Latching
 - Contact Voltage VAC: 250VAC
 - Relay Terminals: Solder
 - Contact Voltage VDC: -
 - Contact Material: Silver Nickel
 - Coil Resistance: 112ohm
 - SVHC: No SVHC (15-Jan-2018)
 - Approval Bodies: VDE
 - Approval Category: UL Recognised
 - Coil Voltage VDC Nom: 5V
 - Contact Current AC Max: 8A
 - Contact Current Max: 8A
 - Contact Voltage AC Max: 400V
 - Contact Voltage AC Nom: 240V
 - Current Rating: 8A
 - DC Coil Power: 200mW
 - Dielectric Voltage Coil to Contact: 5000VAC
 - Dielectric Voltage Contact to Contact: 1000VAC
 - External Depth: 10.1mm
 - External Height: 12.3mm
 - External Length / Height: 12.3mm
 - External Width: 28.5mm
 - Lead Spacing: 3.2mm
 - Must Actuate Voltage: 3.5VDC
 - No. of Pins: 5Pins
 - Nom Operating Power: 223mW
 - Operating Frequency Max: 1200Hz
 - Operating Temperature Max: 70°C
 - Operating Temperature Min: -40°C
 - Operating Time: 7ms
 - Relay Type: Power - General Purpose
