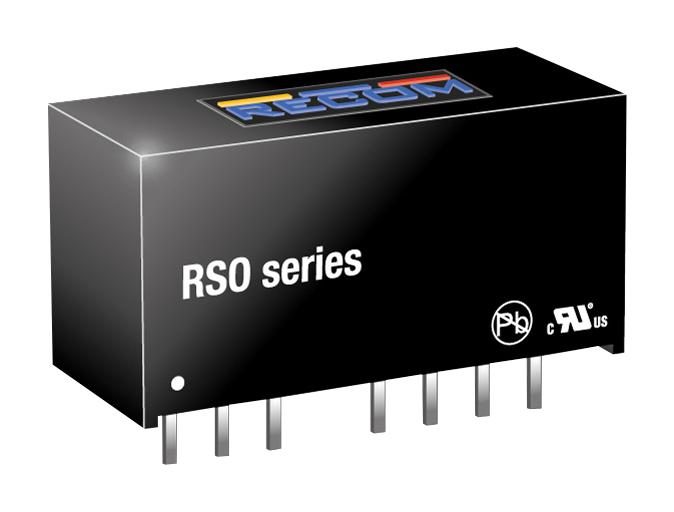

RECOM POWER - RSO-2412SZ/H3 - Isolated Through Hole DC/DC Converter, Medical, 4:1, 1 W, 1 Output, 12 V, 83 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 83mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.8mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN
- Approvals & Standards: IEC 60601, UL
- Efficiency Max: 83%
- External Depth: 11.1mm
- External Length / Height: 21.8mm
- External Width: 9.2mm
- Isolation Voltage: 3kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
- Power Rating: 1W
