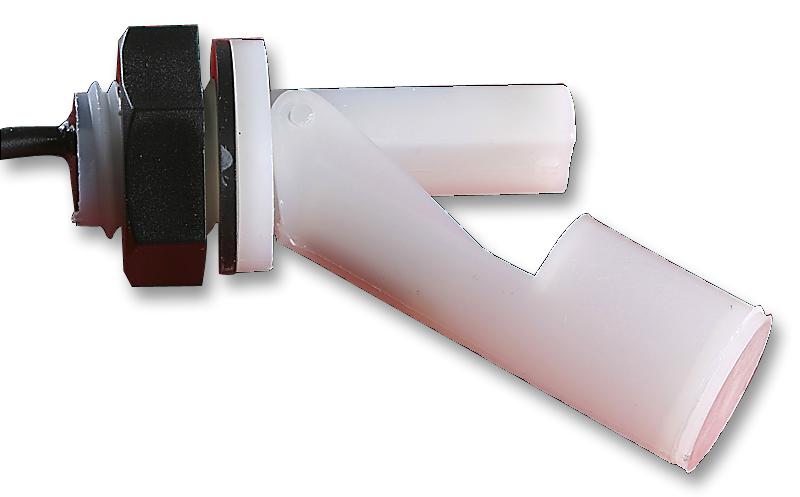

SENSATA / CYNERGY3 - RSF44Z100JF035 - Float Switch, RSF40 Series, Horizontal, Internal Mount, SPST, Polypropylene, 25 VA, 1 m Cable
- Operating Pressure Max: -
- Sensor Body Material: PP (Polypropylene)
- Output Current: 600mA
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- AC Power: 15VA
- Body Material: PP (Polypropylene)
- Colour: Opaque
- Contact Configuration: SPST
- Contact Current AC Max: 0.5A
- Contact Voltage AC Max: 440VAC
- Contact Voltage DC Max: 1000VDC
- External Length / Height: 70mm
- Fixing Hole Diameter: 16.5mm
- Material: Polypropylene
- Operating Temperature Max: 100°C
- Operating Temperature Min: -20°C
- Specific Gravity of Liquid Min: 0.85
