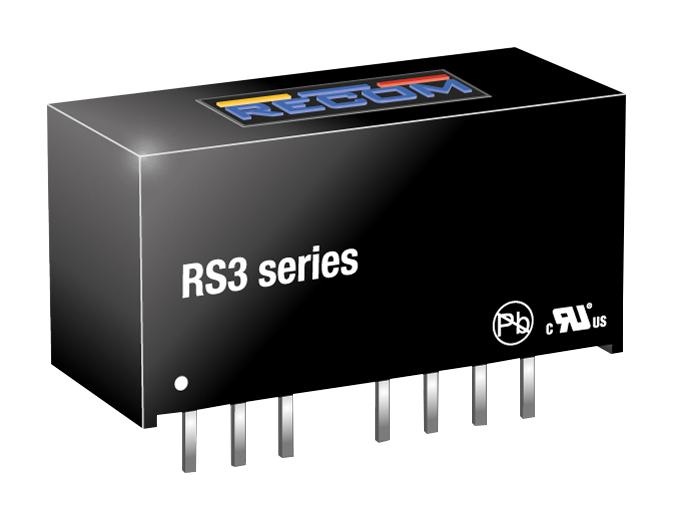

RECOM POWER - RS3-2405S - Isolated Through Hole DC/DC Converter, Medical, 2:1, 3 W, 1 Output, 5 V, 600 mA
- No. of Outputs: 1 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 600mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.8mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN
- Approvals & Standards: IEC 60601, UL
- Efficiency Max: 83%
- External Depth: 11.1mm
- External Length / Height: 21.8mm
- External Width: 9.2mm
- Isolation Voltage: 1kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: +71°C
- Operating Temperature Min: -40°C
- Power Rating: 3W
