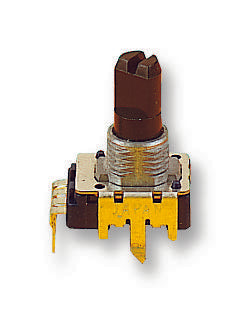

ALPS ALPINE - RK11K11410KA - Rotary Potentiometer, 10 kohm, 1 Turns, Log (Audio), 50 mW, ± 20%, RK11
- Track Resistance: 10kohm
- No. of Turns: 1Turns
- Track Taper: Log (Audio)
- Power Rating: 50mW
- Resistance Tolerance: ± 20%
- Product Range: RK11 Series
- Potentiometer Mounting: Through Hole
- Shaft Diameter: 6mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 17mm
- SVHC: No SVHC (20-Jun-2016)
- End Resistance: 10kohm
- External Depth: 15.7mm
- External Length / Height: 7.5mm
- External Width: 13.8mm
- Full Power Rating Temperature: 70°C
- Resistance: 10kohm
- Resistor Element Material: Metal Foil
- Rotation Mechanical Angle: 300°
- Termination Type: Solder
- Thread Size: M9 x 0.75
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating: 20V
- Voltage Rating V DC: 20V
- Voltage Rating VAC: 50V
