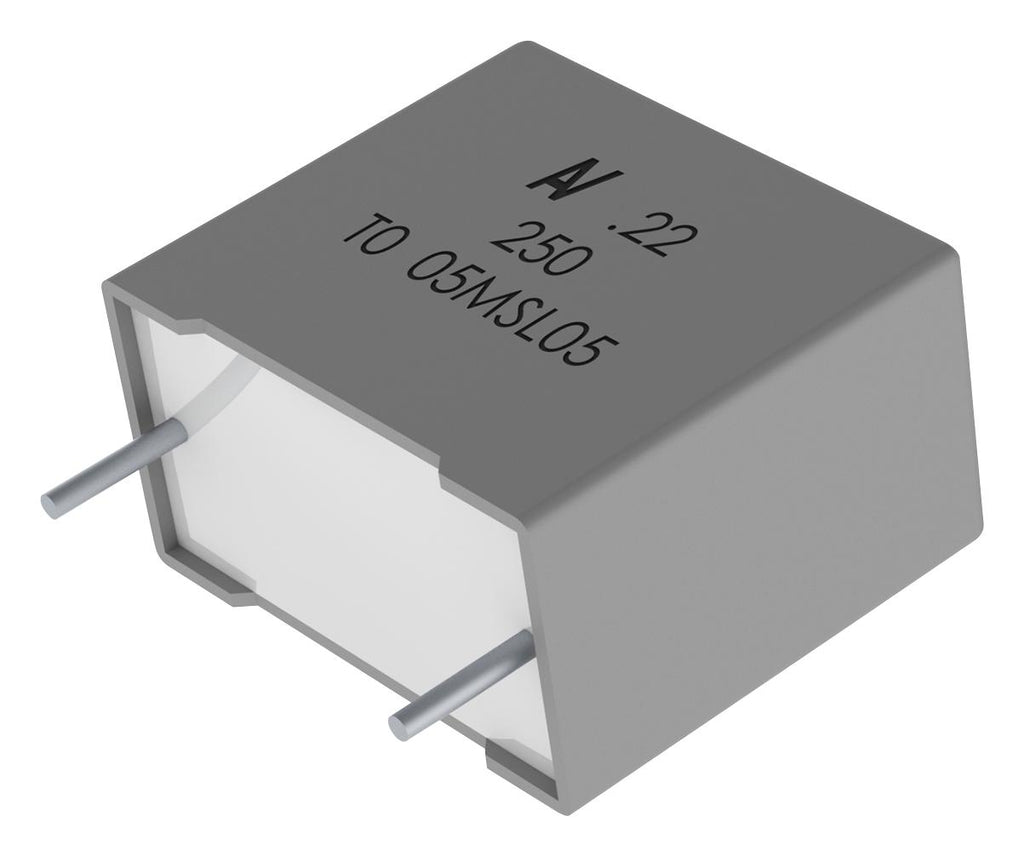

KEMET - R60II32205030J - General Purpose Film Capacitor, Metallized PET Stacked, Radial Box - 2 Pin, 0.22 µF, ± 5%, 160 V
- Capacitance: 0.22µF
- Voltage Rating: 250V
- Capacitor Dielectric Type: PET (Polyester)
- Capacitance Tolerance: ± 5%
- Product Range: R60 Series
- Capacitor Case Style: Radial Box
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 15mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance ±: ± 5%
- Capacitor Application: General Purpose
- Capacitor Mounting: Through Hole
- External Depth: 5mm
- External Length / Height: 11mm
- External Width: 18mm
- Height: 11mm
- Lead Length: 25mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating V DC: 250V
