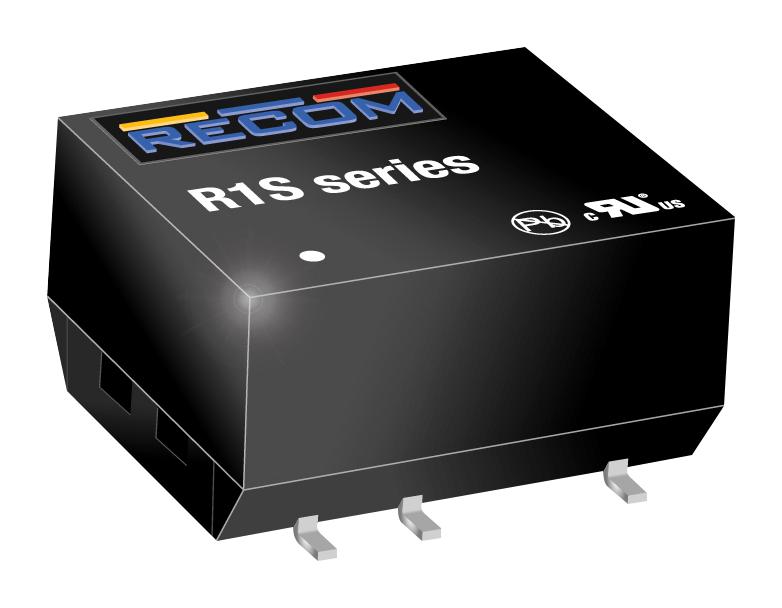

RECOM POWER - R1S-3.33.3 - Isolated Surface Mount DC/DC Converter, Medical, 1:1, 1 W, 1 Output, 3.3 V, 303 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 303mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: R1S Series
- Input Voltage DC Min: 2.97V
- Input Voltage DC Max: 3.63V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Surface Mount DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 10.7mm
- Height: 6.7mm
- Depth: 12.75mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- Approvals & Standards: CSA, IEC 60601, UL
- Efficiency Max: 84%
- External Depth: 7.3mm
- External Length / Height: 12.75mm
- External Width: 8.15mm
- Isolation Voltage: 1kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: +100°C
- Operating Temperature Min: -40°C
- Power Rating: 1W
