description

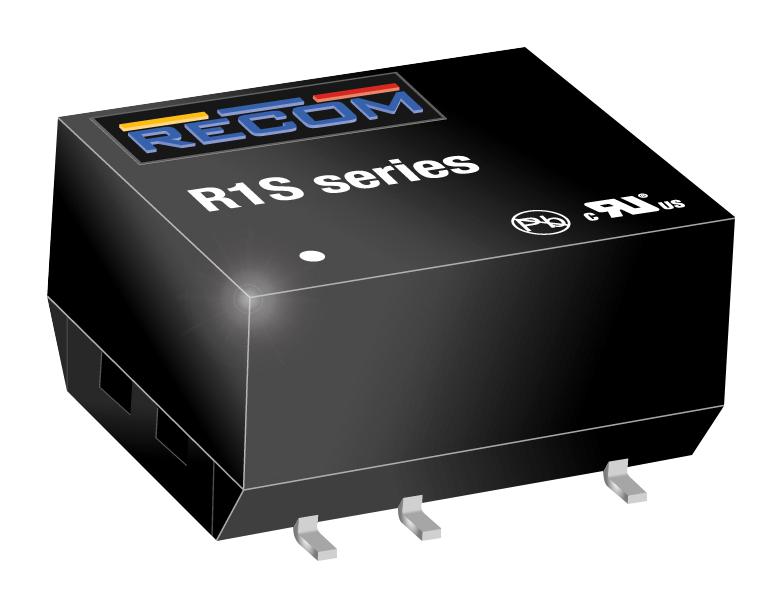

RECOM POWER - R1S-2405/HP - Isolated Surface Mount DC/DC Converter, Medical, 1:1, 1 W, 1 Output, 5 V, 200 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 200mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: R1S Series
- Input Voltage DC Min: 21.6V
- Input Voltage DC Max: 26.4V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Surface Mount DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 10.7mm
- Height: 6.7mm
- Depth: 12.75mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CSA, EN, IEC, UL
