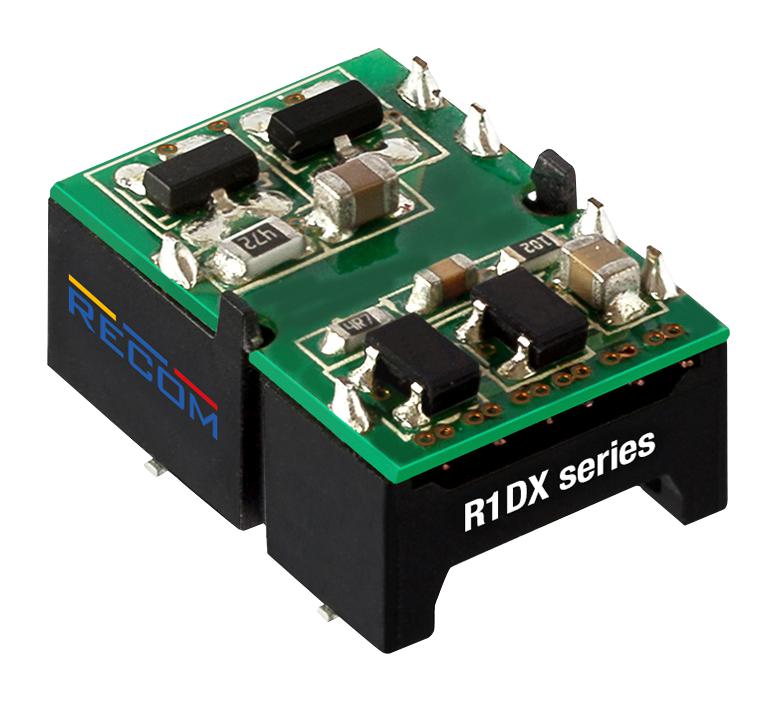

RECOM POWER - R1DX-0515/H-TRAY - Isolated Surface Mount DC/DC Converter, Medical, 1:1, 1 W, 2 Output, 15 V, 33 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 33mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 33mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: R1DX Series
- Input Voltage DC Min: 4.5V
- Input Voltage DC Max: 5.5V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Module
- DC / DC Converter Mounting: Surface Mount Device
- Width: 10.7mm
- Height: 8mm
- Depth: 15.24mm
- SVHC: No SVHC (15-Jan-2019)
