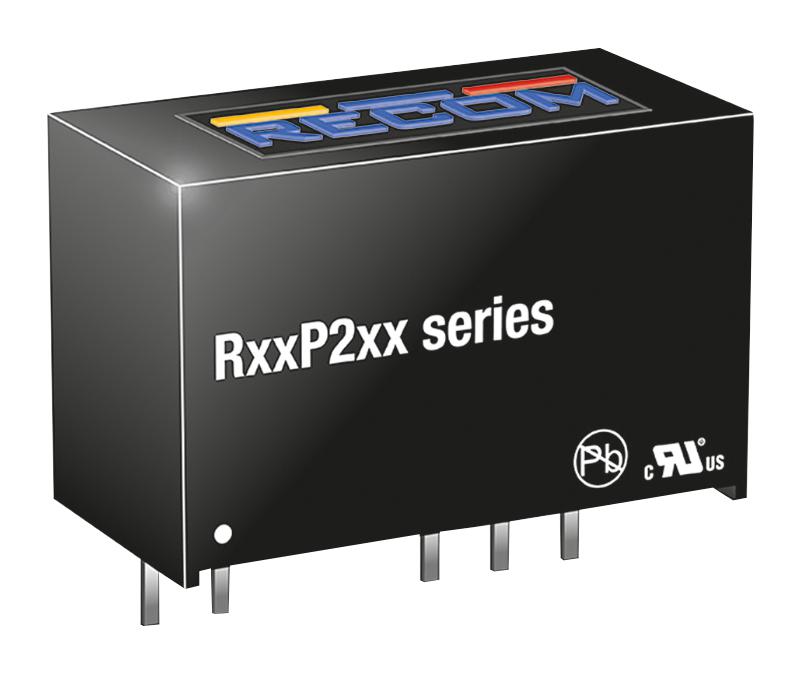

RECOM POWER - R12P212D/P - Isolated Through Hole DC/DC Converter, Medical, 1:1, 2 W, 2 Output, 12 V, 85 mA
- No. of Outputs: 2 Output
- Output Power Max: 2W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 85mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 85mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RxxP2xxD/R
- Input Voltage DC Min: 10.8V
- Input Voltage DC Max: 13.2V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.8mm
- Height: 12.5mm
- Depth: 19.5mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CSA, EN, ES, IEC, UL
