description

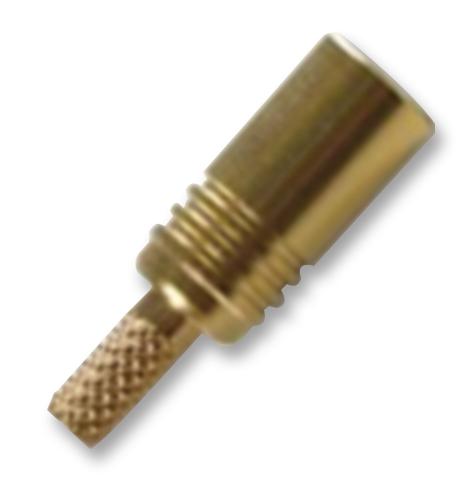

RADIALL - R113240000 - RF / Coaxial Connector, MCX Coaxial, Straight Jack, Crimp, 50 ohm, RG174, RG188, RG316
- Connector Type: MCX Coaxial
- Connector Body Style: Straight Jack
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG174, RG188, RG316
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 6GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Body Plating: Gold
- Coaxial Type: RG174A/U
- Connector Mounting Orientation: Cable
- Material: Brass
- Operating Frequency Max: 3GHz
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Proof Voltage: 500V
- Termination Method: Crimp
- VSWR: 1.35
- Working Voltage: 170V
