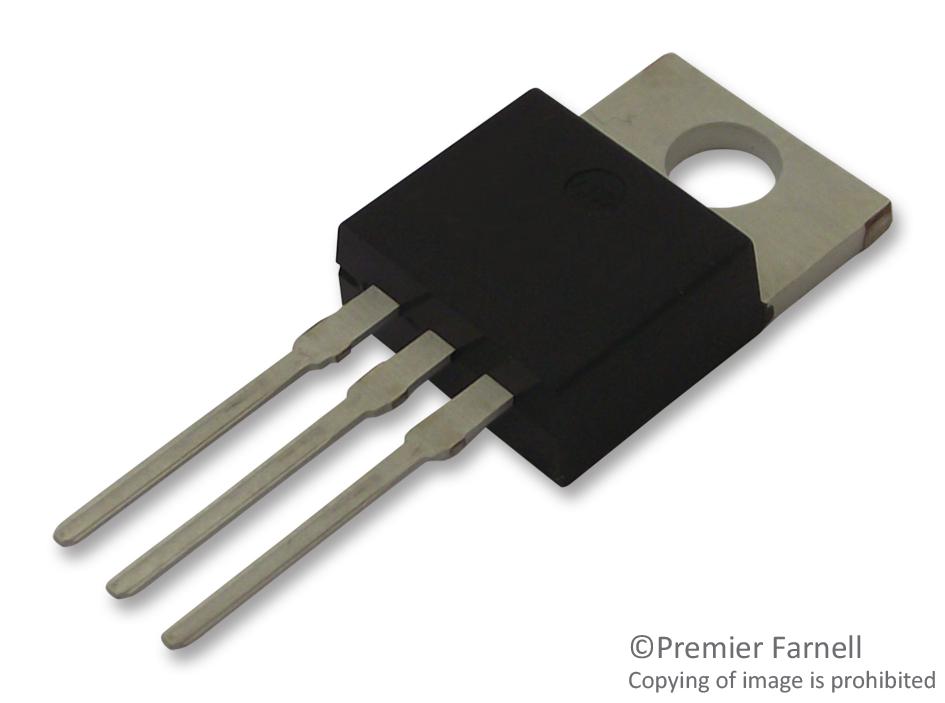

LITTELFUSE - Q6025L6TP - Triac, 600 V, 25 A, TO-220AB, 1.3 V, 208 A, 100 mA
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- On State RMS Current IT(rms): 25A
- Triac Case Style: TO-220AB
- Gate Trigger Current Max (QI), Igt: 80mA
- Gate Trigger Voltage Max Vgt: 1.3V
- Peak Gate Power: 500mW
- Peak Non Rep Surge Current Itsm 50Hz: 208A
- Holding Current Max Ih: 100mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: Qxx25xx Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (12-Jan-2017)
