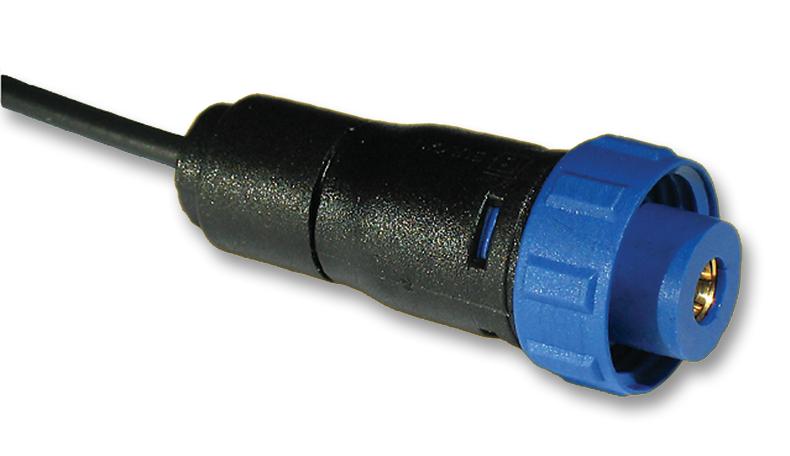

BULGIN LIMITED - PX0416/3M00 - RF / Coaxial Cable Assembly, SMB Plug to Free End, RG174, 50 ohm, 9.8 ft, 3 m, Black
- Connector to Connector: SMB Plug to Free End
- Coaxial Cable Type: RG174
- Impedance: 50ohm
- Cable Length - Imperial: 9.84ft
- Cable Length - Metric: 3m
- Jacket Colour: Black
- Product Range: Buccaneer SMB Series
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: UL
- Cable Assembly Type: Audio, Video
- Cable Length: 3m
- Centre Contact Resistance: 6mohm
- Coaxial Type: RG174
- Connector Type A: SMB Plug, 50ohm
- Connector Type B: Free End
- Contact Resistance: 2.5mohm
- External Diameter: 19mm
- Flammability Rating: UL94V-0
- Lead Length: 3000mm
- Operating Frequency Max: 4GHz
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
