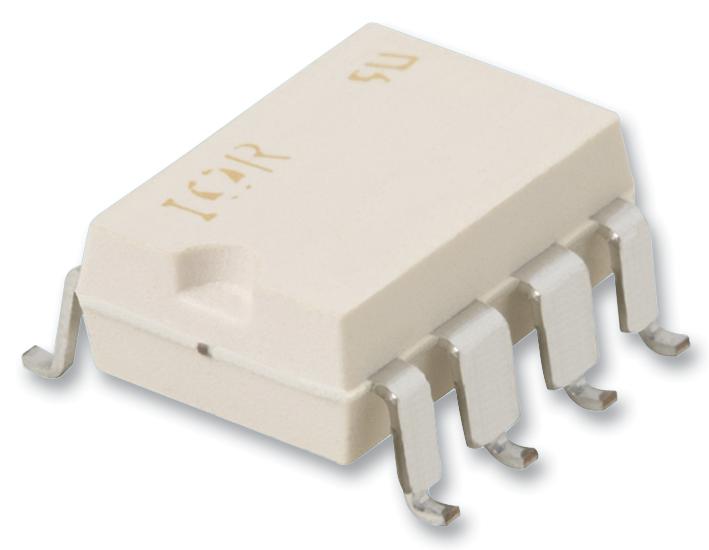

INFINEON - PVI1050NSPBF - MOSFET Relay, 8 VDC, 10 µA, DPST-NO
- Contact Configuration: DPST-NO
- Load Current: 10µA
- Relay Terminals: SMD
- Load Voltage Max: 8VDC
- On State Resistance Max: -
- Isolation Voltage: 2.5kV
- Forward Current If: 50mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Control Current Max: 50mA
- Control Current Min: 2mA
- Control Voltage DC Max: 6V
- External Depth: 6.35mm
- External Length / Height: 3.81mm
- External Width: 9.39mm
- Insulation Resistance: 1000Gohm
- Lead Spacing: 2.54mm
- Load Current DC Max: 10µA
- Load Voltage DC Max: 8VDC
- Load Voltage Range: 8V DC
- No. of Pins: 8Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Turn Off Time: 220µs
- Turn On Time: 300µs
