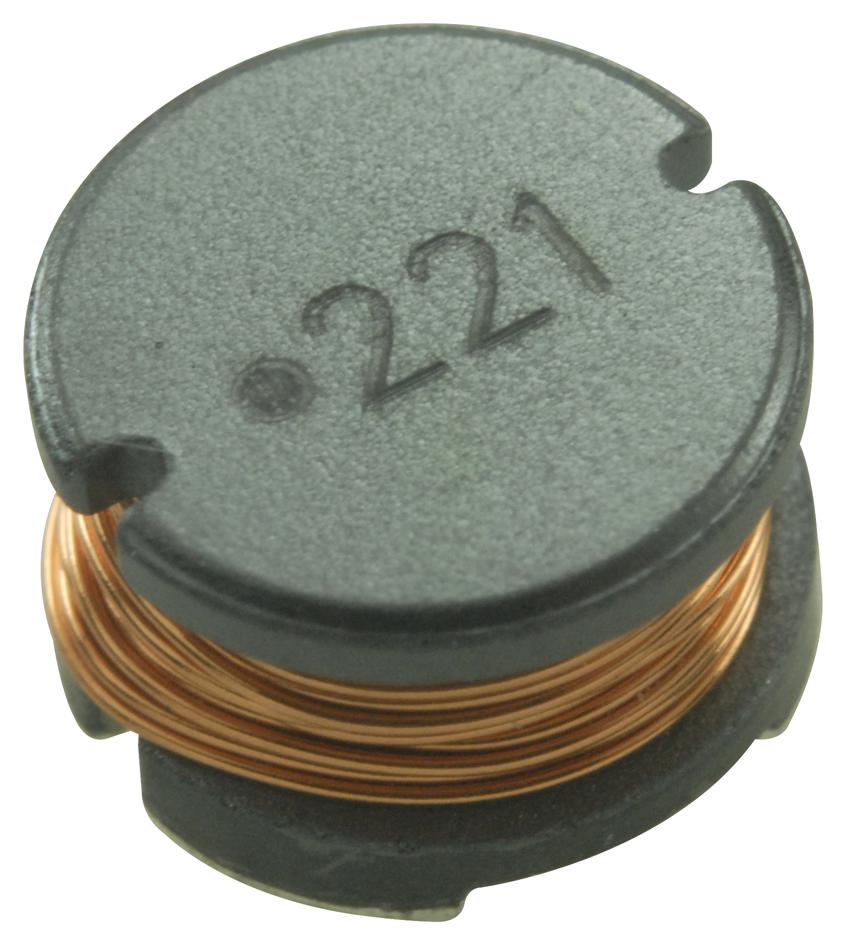

BOURNS JW MILLER - PM105-680K-RC - Power Inductor (SMD), 68 µH, 1.1 A, Unshielded, 2 A, PM105, 9.8mm x 9.8mm x 5.8mm
- Inductance: 68µH
- RMS Current (Irms): 1.1A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2A
- Product Range: PM105 Series
- Power Inductor Case: 9.8mm x 9.8mm x 5.8mm
- DC Resistance Max: 0.22ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Q Test Frequency: 2.52MHz
- Resonant Frequency: 9MHz
- Self Resonant Frequency Min: 9MHz
