description

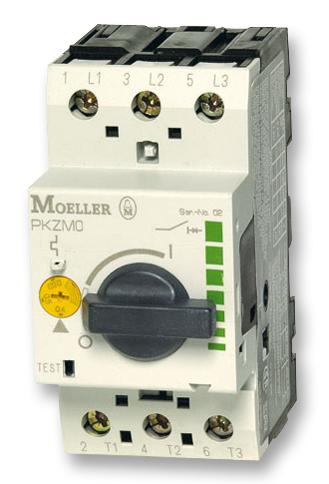

EATON MOELLER - PKZM0-16 - Thermal Magnetic Circuit Breaker, Motor Protection, xStart, 16 A, 3 Pole, 380 VAC, DIN Rail
- Product Range: xStart Series
- Current Rating: 16A
- No. of Poles: 3 Pole
- Voltage Rating V DC: -
- Voltage Rating VAC: 380VAC
- Circuit Breaker Mounting: DIN Rail
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: CSA, IEC, UL
- Breaking Capacity Current AC: 10kA
- Breaking Capacity Current DC: 50kA
- External Depth: 76mm
- External Length / Height: 93mm
- External Width: 45mm
- Switching AC3 Power Max: 7.5W
- Tripping Characteristic: 121-1364-11
