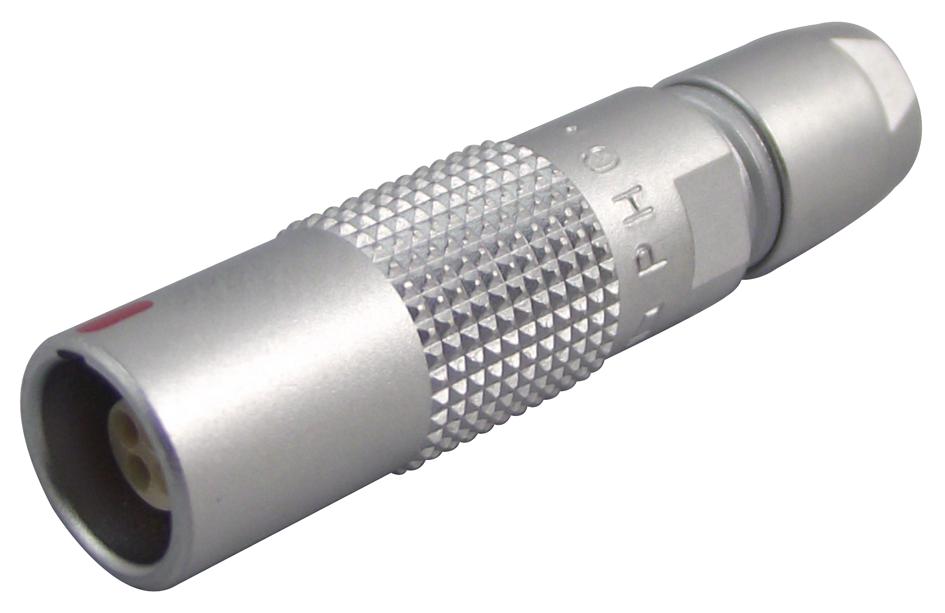

LEMO - PHG.00.304.CLLD35 - Circular Connector, 00 Series, Cable Mount Receptacle, 4 Contacts, Solder Socket, Push-Pull
- Product Range: 00 Series
 - Circular Connector Shell Style: Cable Mount Receptacle
 - No. of Contacts: 4Contacts
 - Circular Contact Type: Solder Socket
 - Coupling Style: Push-Pull
 - Connector Body Material: Brass Body
 - Connector Body Plating: Chrome
 - Contact Material: Bronze
 - Contact Plating: Gold
 - SVHC: No SVHC (07-Jul-2017)
 - Body Plating: Chrome
 - Connector Mounting: Cable Mount
 - Connector Type: Circular Industrial
 - Contact Gender: Socket
 - Contact Plating: Gold Plated Contacts
 - Contact Resistance: 7.5mohm
 - Contact Termination: Solder
 - Contact Termination Type: Solder
 - Current Rating: 2A
 - Dielectric Strength: 19V/m
 - Female Contact Material: Bronze
 - Gender: Receptacle
 - IP / NEMA Rating: IP50
 - Male Contact Material: Brass
 - Male Contact Plating: Gold
 - No. of Mating Cycles: 5000
 - Operating Temperature Max: -55°C
 - Operating Temperature Min: 250°C
 - Power Contact Diameter: 0.5mm
 - Voltage Rating V DC: 500V
 - Voltage Rating VAC: 350V
 - Working Voltage: 260V
