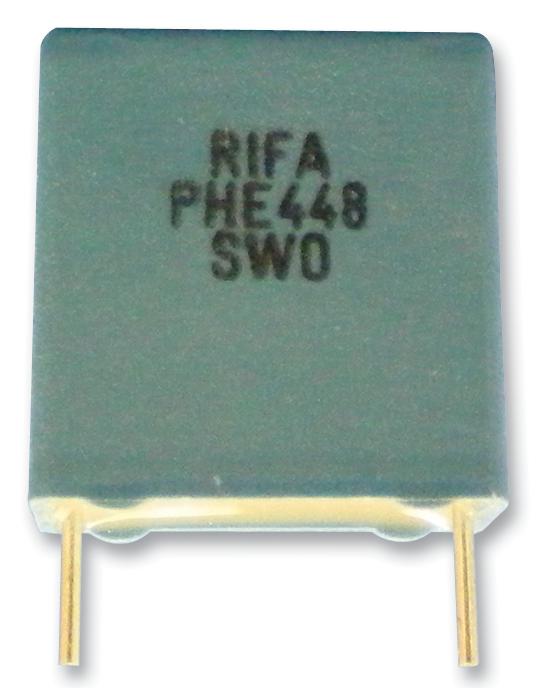

KEMET - PHE448RB5100JR06 - General Purpose Film Capacitor, Film / Foil PP, Radial Box - 2 Pin, 0.01 µF, ± 5%, 650 V, 1.6 kV
- Capacitance: 10000pF
- Voltage Rating: 1.6kV
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 5%
- Product Range: PHE448 Series
- Capacitor Case Style: Radial Box
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 15mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance ±: ± 5%
- Capacitor Mounting: Through Hole
- External Depth: 8.5mm
- External Length / Height: 16mm
- External Width: 18mm
- Height: 16mm
- Lead Diameter: 0.8mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating V DC: 1.6kV
