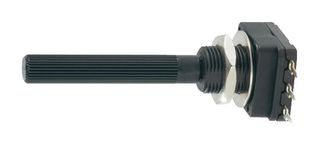

PC16SH-10CP06-103A2020-TA - Rotary Potentiometer, 10 kohm, 1 Turns, Linear, 200 mW, ± 20%, PC-16 Series - AMPHENOL PIHER SENSORS AND CONTROLS
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
PC16SH-10CP06-103A2020-TA - Rotary Potentiometer, 10 kohm, 1 Turns, Linear, 200 mW, ± 20%, PC-16 Series - AMPHENOL PIHER SENSORS AND CONTROLS

PC16SH-10CP06-103A2020-TA - Rotary Potentiometer, 10 kohm, 1 Turns, Linear, 200 mW, ± 20%, PC-16 Series - AMPHENOL PIHER SENSORS AND CONTROLS

AMPHENOL PIHER SENSORS AND CONTROLSUGS :PC16SH-10CP06-103A2020-TA Code de commande:4006858
Prix:
€5,36

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documenten en downloads

description

  • Adjustment Type: Knurled
  • No. of Gangs: 1
  • No. of Turns: 1Turns
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Potentiometer Mounting: Through Hole
  • Potentiometer Terminals: Solder Lug
  • Potentiometer Type: Modular
  • Power Rating: 200mW
  • Product Height: 20.5mm
  • Product Length: 53mm
  • Product Range: PC-16 Series
  • Product Width: 16mm
  • Resistance Tolerance: ± 20%
  • Resistor Case / Package: -
  • Resistor Technology: Carbon Film
  • Shaft Diameter: 6mm
  • Shaft Length: 45mm
  • Temperature Coefficient: -
  • Track Resistance: 10kohm
  • Track Taper: Linear
