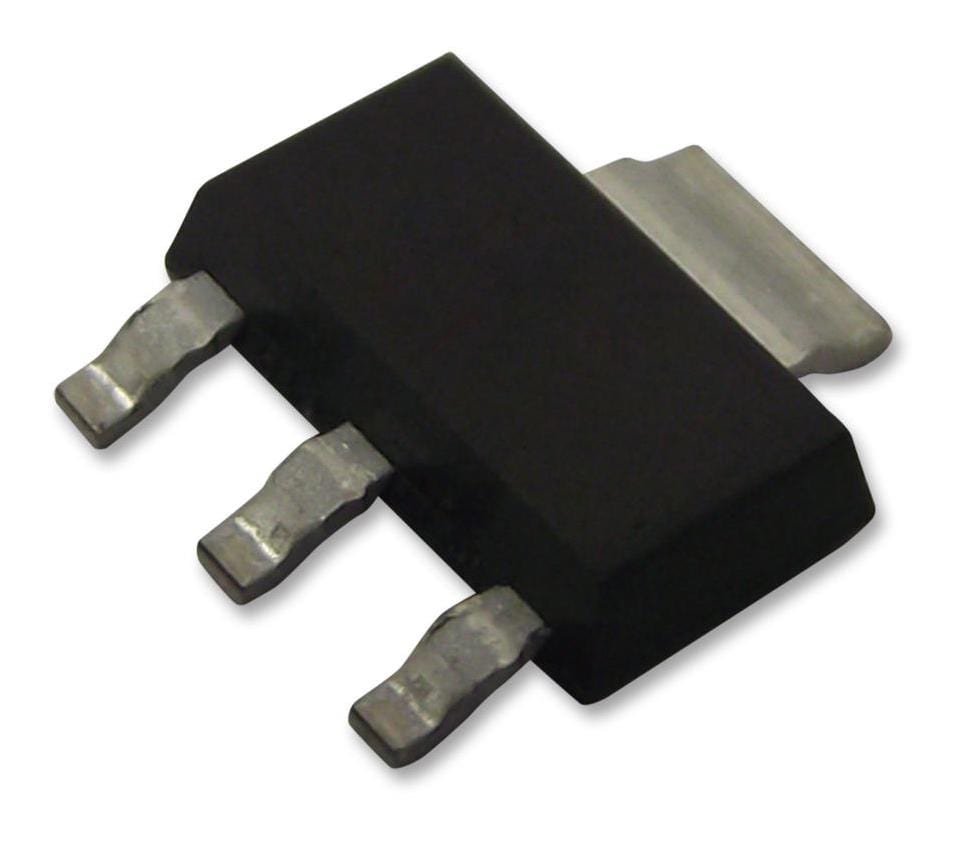

NEXPERIA - PBSS5540Z,115 - Bipolar (BJT) Single Transistor, PNP, 40 V, 5 A, 1.35 W, SOT-223, Surface Mount
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 40V
- Transition Frequency ft: 120MHz
- Power Dissipation Pd: 1.35W
- DC Collector Current: 5A
- DC Current Gain hFE: 350hFE
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Av Current Ic: 5A
- Collector Emitter Saturation Voltage Vce(on): -120mV
- Continuous Collector Current Ic Max: 5A
- Current Ic Continuous a Max: 5A
- Current Ic hFE: 500mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 120MHz
- Hfe Min: 250
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 2W
- SMD Marking: PB5540
- Voltage Vcbo: 40V
