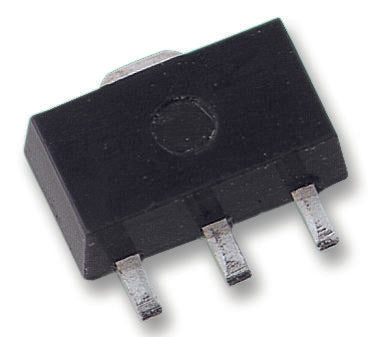

NEXPERIA - PBSS5250X,115 - Bipolar (BJT) Single Transistor, PNP, 50 V, 2 A, 550 mW, SOT-89, Surface Mount
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 50V
- Transition Frequency ft: -
- Power Dissipation Pd: 550mW
- DC Collector Current: 2A
- DC Current Gain hFE: 200hFE
- Transistor Case Style: SOT-89
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 90V
- Continuous Collector Current Ic Max: 2A
- Current Ic @ Vce Sat: 500A
- Current Ic Continuous a Max: 2A
- Current Ic hFE: 500µA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 100MHz
- Hfe Min: 200
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 1.3kW
- Voltage Vcbo: -50V
