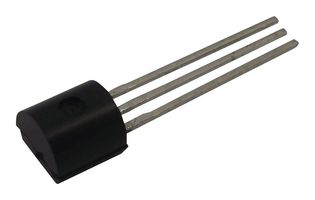

P0111MA 1AA3 - Thyristor, 600 V, 25 µA, 500 mA, 800 mA, TO-92, 3 Pins - STMICROELECTRONICS

STMICROELECTRONICSUGS :P0111MA 1AA3 Code de commande:4036231

Prix:
Prix ​​promotionnel€1,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1742 unité)

Documenten en downloads

description

  • Average On State Current: 500mA
  • Gate Trigger Current Max: 25µA
  • Gate Trigger Voltage Max: 800mV
  • Holding Current Max: 5mA
  • No. of Pins: 3Pins
  • On State RMS Current: 800mA
  • Operating Temperature Max: 125°C
  • Peak Non Repetitive Surge Current: 8A
  • Peak Repetitive Off State Voltage: 600V
  • Product Range: P011xx Series
  • Thyristor Case Style: TO-92
  • Thyristor Mounting: Through Hole
