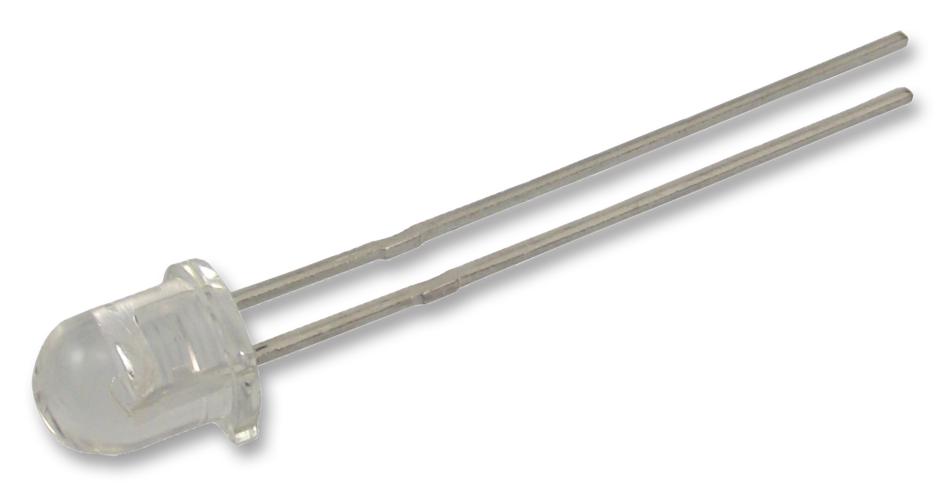

TT ELECTRONICS / OPTEK TECHNOLOGY - OP293A - Infrared Emitter, 890 nm, 60 °, TO-46, 500 ns, 250 ns
- Peak Wavelength: 890nm
- Angle of Half Intensity: 60°
- Diode Case Style: TO-46
- Radiant Intensity (Ie): -
- Rise Time: 500ns
- Fall Time tf: 250ns
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 2V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- External Length / Height: 5.58mm
- Head Diameter: 4.65mm
- Lead Length: 19.05mm
- Lead Spacing: 2.54mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +100°C
- PIV Max: 2V
- Peak Forward Current: 200mA
- Radiometric Power: 26mW
- Radiometric Power Min: 16mW
- Reverse Leakage Current Max: 100µA
- Storage Temperature Max: 100°C
- Storage Temperature Min: -40°C
- Viewing Angle: 60°
