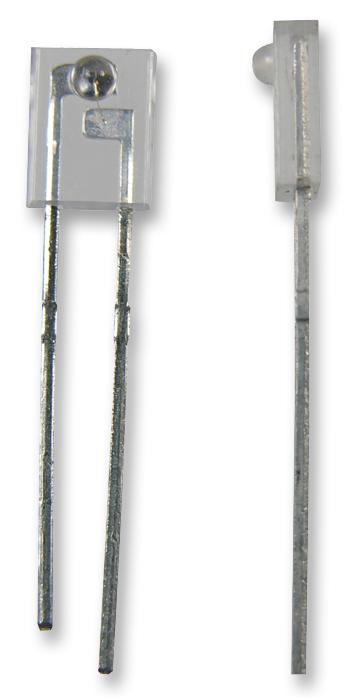

TT ELECTRONICS / OPTEK TECHNOLOGY - OP140A - Infrared Emitter, 935 nm, 80 °, Side Looking, 1 µs, 500 ns
- Peak Wavelength: 935nm
- Angle of Half Intensity: 80°
- Diode Case Style: Side Looking
- Radiant Intensity (Ie): -
- Rise Time: 1µs
- Fall Time tf: 500ns
- Forward Current If(AV): 50mA
- Forward Voltage VF Max: 1.6V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 2.3mm
- External Length / Height: 5.7mm
- External Width: 4.4mm
- Lead Length: 12.7mm
- Lead Spacing: 2.54mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +100°C
- Peak Pulse Current Ippm: 3A
- Radiometric Power Min: 0.4mW
- Reverse Leakage Current Max: 100µA
- Storage Temperature Max: 100°C
- Storage Temperature Min: -40°C
- Viewing Angle: 80°
