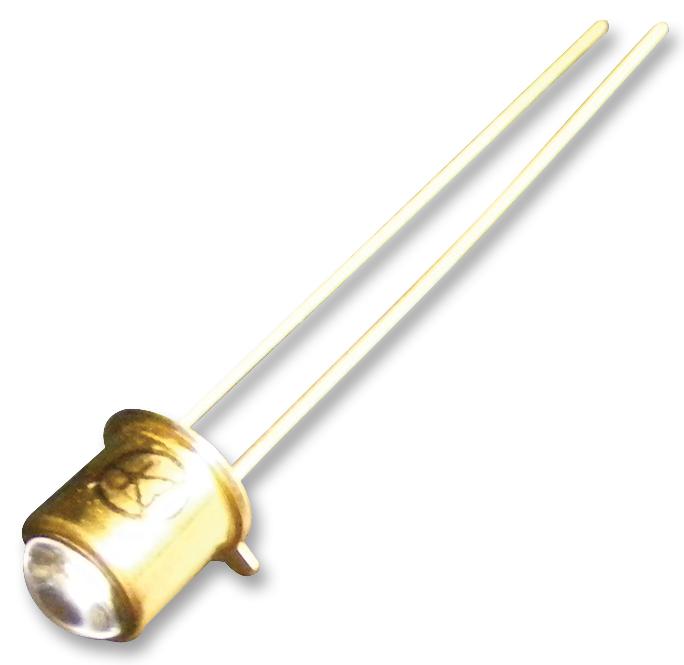

TT ELECTRONICS / OPTEK TECHNOLOGY - OP132 - Infrared Emitter, Hermetic, 935 nm, 18 °, TO-46, 1 µs, 500 ns
- Peak Wavelength: 935nm
- Angle of Half Intensity: 18°
- Diode Case Style: TO-46
- Radiant Intensity (Ie): -
- Rise Time: 1µs
- Fall Time tf: 500ns
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 1.75V
- Operating Temperature Min: -65°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- No. of Pins: 2Pins
- Operating Temperature Range: -65°C to +125°C
- Viewing Angle: 18°
