description

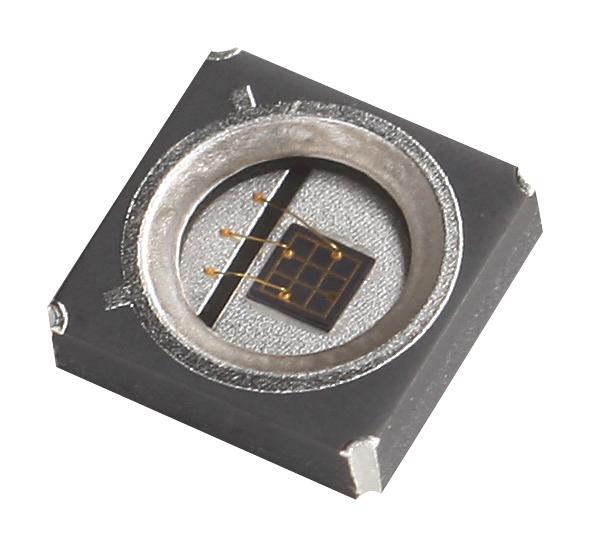

OSA OPTO LIGHT - OCU-440 UE390 - UV-A Emitter, 395nm, 400mW, 3.6V/350mA Forward, Top View SMD, 3mm x 2mm
- Product Range: OCU-440 Series
- LED Colour: Ultra Violet
- Wavelength Typ: 395nm
- Viewing Angle: -
- Luminous Flux @ Test: -
- Forward Current If Max: 350mA
- Forward Current @ Test: 350mA
- Forward Voltage @ Test: 3.6V
- Luminous Intensity @ Test: -
- Power Dissipation Pd: 260mW
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Forward Current If: 350mA
- Forward Voltage: 3.6V
- Forward Voltage VF Max: 4.5V
- LED Mounting: SMD
- Lens Colour: Clear
- Lens Shape: Round with Flat Top
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Opto Case Style: 1515
- Power @ Test: 1.3W
- Wavelength Max: 395nm
- Wavelength Min: 390nm
