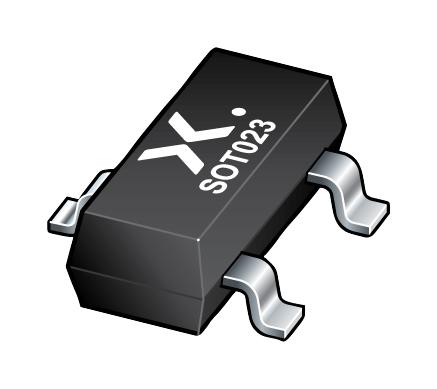

NEXPERIA - NX138BKR - Power MOSFET, Trench, N Channel, 60 V, 265 mA, 2.1 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 265mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 2.1ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1V
- Power Dissipation Pd: 310mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
