description

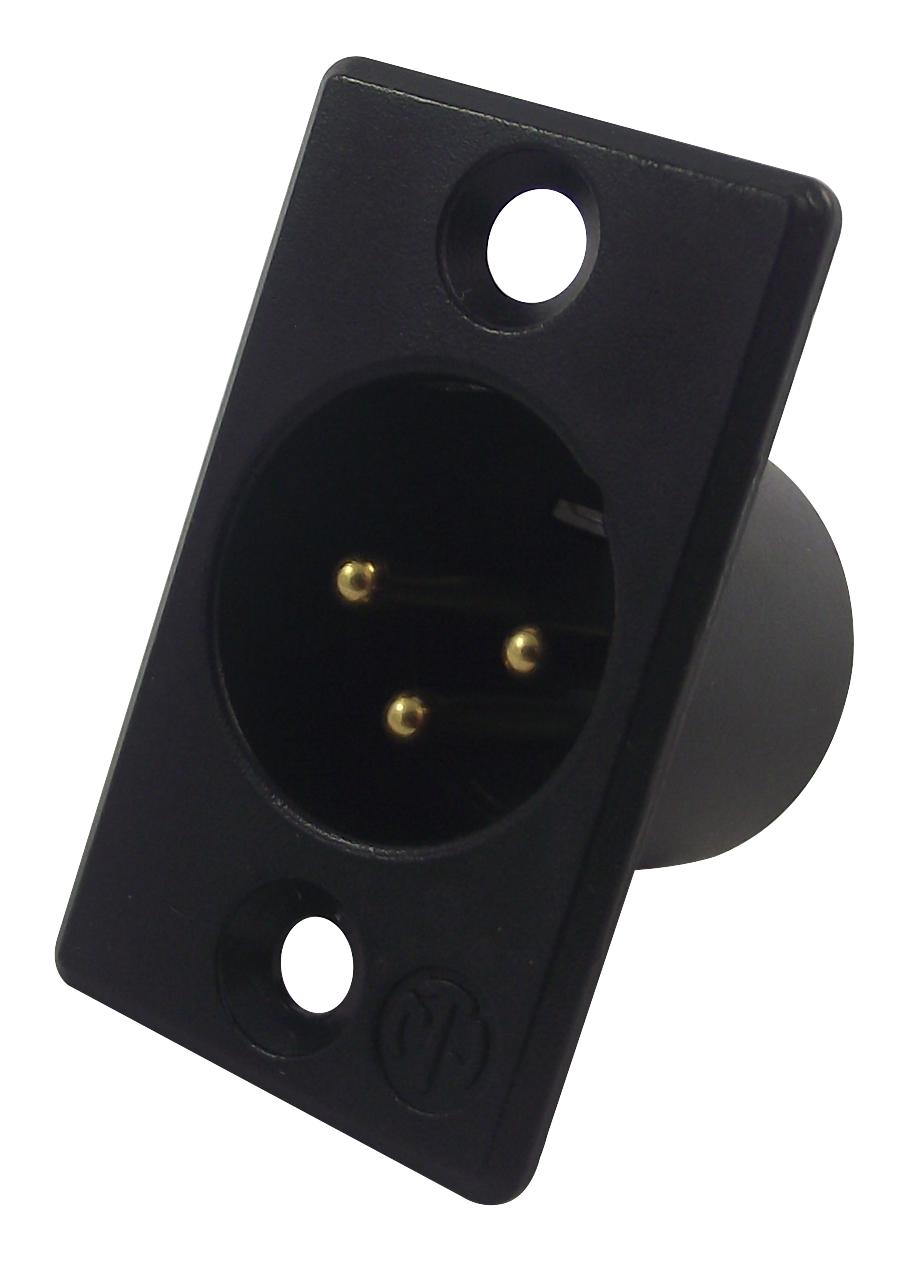

NEUTRIK - NC3MP-B - XLR Connector, 3 Contacts, Plug, Panel Mount, Gold Plated Contacts, Metal Body, P Series
- No. of Contacts: 3Contacts
- Gender: Plug
- Connector Mounting: Panel Mount
- Contact Plating: Gold Plated Contacts
- Connector Body Material: Metal Body
- Product Range: P Series
- SVHC: No SVHC (27-Jun-2018)
- Colour: Black
- Connector Colour: Black
- Contact Resistance: 3mohm
- Contact Termination: Solder
- External Length / Height: 36.7mm
- External Width: 22mm
- Material: Diecast Zinc, Sandblasted, Copper & Nickel Plated
- Panel Cutout Diameter: 20mm
- RMS Current (Irms): 16A
- Termination Method: Solder
- Voltage Rating VAC: 250V
- Working Voltage: 250V
