description

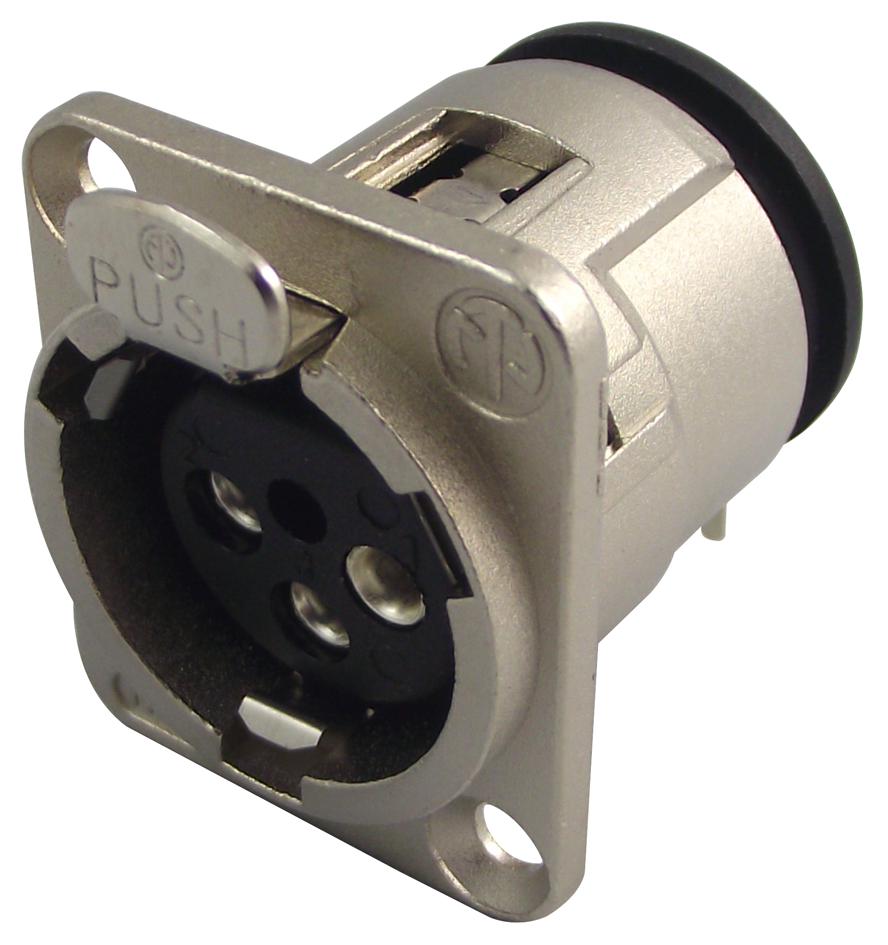

NEUTRIK - NC3FDH - XLR Connector, 3 Contacts, Socket, PCB Mount, Silver over Nickel Plated Contacts, Metal Body, D
- No. of Contacts: 3Contacts
- Gender: Socket
- Connector Mounting: PCB Mount
- Contact Plating: Silver over Nickel Plated Contacts
- Connector Body Material: Metal Body
- Product Range: D Series
- SVHC: No SVHC (27-Jun-2018)
- Colour: Nickel
- Connector Colour: Natural
- Contact Resistance: 3mohm
- Contact Termination: Through Hole Vertical
- External Length / Height: 30mm
- External Width: 26mm
- Material: Die-cast Zinc
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 24mm
- RMS Current (Irms): 6A
- Termination Method: Solder
- Voltage Rating VAC: 250V
- Working Voltage: 250V
