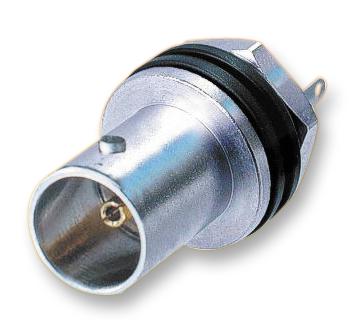

NEUTRIK - NBB75SI - RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Solder, 75 ohm, Brass
- Connector Type: BNC Coaxial
- Connector Body Style: Straight Bulkhead Jack
- Coaxial Termination: Solder
- Impedance: 75ohm
- Coaxial Cable Types: -
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 3GHz
- Connector Mounting: Panel Mount
- Product Range: NBB75 series
- SVHC: No SVHC (27-Jun-2018)
- Connector Mounting Orientation: Panel
- Contact Resistance Max: 3mohm
- Contact Resistance Min: 2mohm
- Insulation Resistance: 5Gohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: 30°C
- Termination Method: Solder
- VSWR: 1.03
- Voltage Rating VAC: 500V
- Withstand Voltage: 1500VAC
