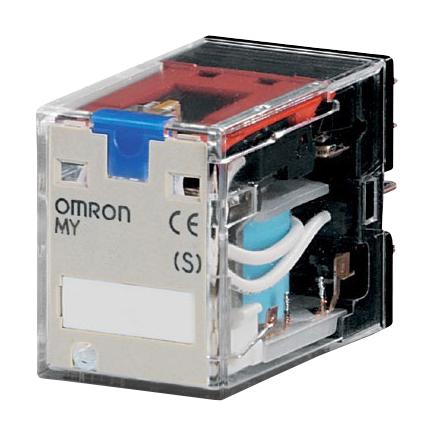

OMRON - MY2IN DC12 - Power Relay, DPDT, 12 VDC, 10 A, MY, Socket, Non Latching
- Contact Configuration: DPDT
- Coil Voltage: 12VDC
- Contact Current: 10A
- Product Range: MY Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30VDC
- Contact Material: Silver
- Coil Resistance: 160ohm
- AC Coil Power: 1.2VA
- Approvals & Standards: CSA, UL
- Coil Current: 75mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 0.9W
- External Depth: 36mm
- External Height: 28mm
- External Length / Height: 28mm
- External Width: 21.5mm
- Nom Operating Power: 900mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -55°C
- Operating Time: 20ms
- Relay Type: Power
- Release Time: 20ms
