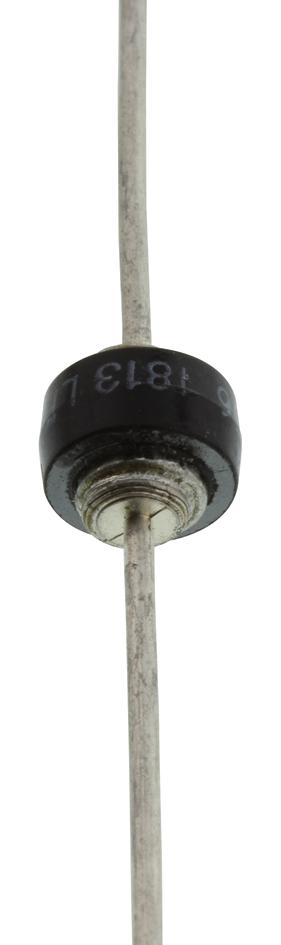

SOLID STATE - MR756 - Standard Recovery Diode, 600 V, 6 A, Single, 900 mV, 400 A
- Repetitive Reverse Voltage Vrrm Max: 600V
- Forward Current If(AV): 6A
- Diode Configuration: Single
- Forward Voltage VF Max: 900mV
- Reverse Recovery Time trr Max: -
- Forward Surge Current Ifsm Max: 400A
- Operating Temperature Max: 175°C
- Diode Case Style: -
- No. of Pins: 2Pins
- Product Range: MR756 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Diode Type: Standard Recovery
- No. of Pins: 2 Pin
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
