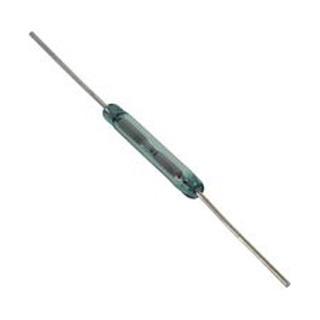

LITTELFUSE - MLRR-4-17-38 - Reed Switch, MLRR-4, SPST, 1 A, 200 VDC, 20 W
- Product Range: MLRR-4 Series
- Contact Configuration: SPST
- Switch Mounting: -
- Contact Current Max: 1A
- Switching Voltage Max: 200VDC
- Switching Power Max: 20W
- Contact Resistance Max: 0.1ohm
- Operate AT Min: 17AT
- Operate AT Max: 38AT
- Approval Category: UL Recognised
- Body Length: 15.24mm
- Body Material: Glass
- Contact Current DC Max: 1A
- External Diameter: 2.54mm
- Lead Length: 12.19mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operation Ampere Turns Range: 17AT to 38AT
- Switch Case: Glass
- Switching Current DC Max: 1A
- Switching Voltage AC / DC Max: 200VDC
