description

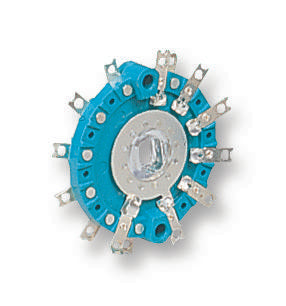

NSF (CONTROLS) - MK112S 454633MK - Switch Wafer, Rotary Switches, 1 Pole, 12 Ways
- For Use With: Rotary Switches
- No. of Poles: 1 Pole
- No. of Positions: 12Ways
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Contact Current @ Contact Voltage AC Max: 500mA
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Rating: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 250V
- External Diameter: 32mm
- Indexing Angle: 30°
- Insulation Resistance: 1000000Mohm
- Shaft Diameter: 6.35mm
- Switch Operation: Off-On
