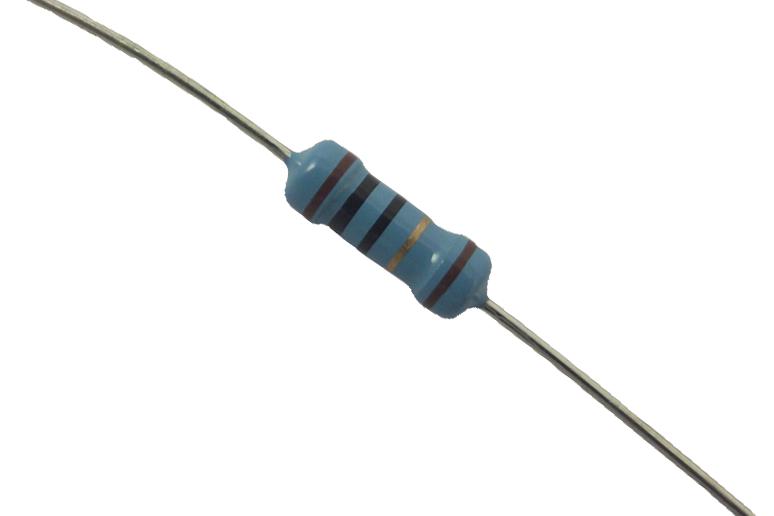

MULTICOMP PRO - MF50 43K - Through Hole Resistor, 43 kohm, MF50, 500 mW, ± 1%, Axial Leaded, 350 V
- Resistance: 43kohm
- Product Range: MF50 Series
- Power Rating: 500mW
- Resistance Tolerance: ± 1%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 350V
- Resistor Element Material: Metal Film
- Temperature Coefficient: ± 50ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 3.5mm
- Box Quantity: 1000
- External Length / Height: 10mm
- Full Power Rating Temperature: 70°C
- Lead Diameter: 0.54mm
- Lead Length: 28mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Overload Voltage: 700V
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 50ppm/°C
- Temperature Coeff. -: 50ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 350V
