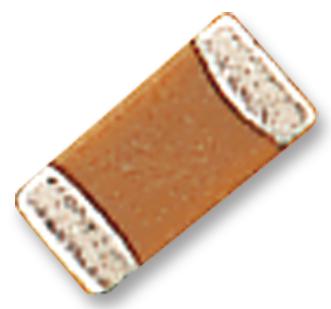

MULTICOMP PRO - MCB1206F475ZCT - SMD Multilayer Ceramic Capacitor, 4.7 µF, 16 V, 1206 [3216 Metric], -20%, +80%, Y5V, MCB
- Capacitance: 4.7µF
- Voltage Rating: 16V
- Ceramic Capacitor Case: 1206 [3216 Metric]
- Capacitance Tolerance: +80%, -20%
- Dielectric Characteristic: Y5V
- Product Range: MCB Series
- Operating Temperature Min: -30°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (07-Jul-2017)
- Capacitance Tolerance ±: +80%, -20%
- Capacitor Terminals: SMD
- External Depth: 1.52mm
- External Length / Height: 3.2mm
- External Width: 1.6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -30°C to +85°C
- Reel Quantity: 3000
- Tape Width: 8mm
- Tolerance +: 80%
- Tolerance -: 20%
- Voltage Rating V DC: 16V
