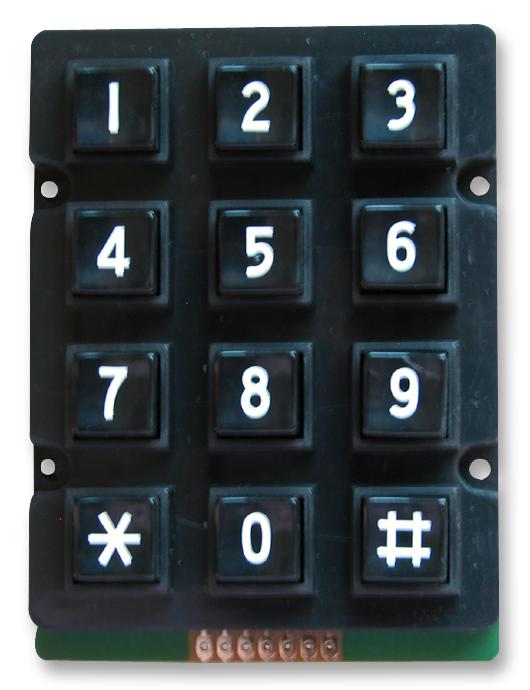

MULTICOMP - MCAK207NBBWWP - Keypad, 3 x 4, Matrix, Plastic, 20 mA, 24 V
- Product Range: -
- Keypad Array: 3 x 4
- Keypad Output: Matrix
- Housing Material: Plastic
- Contact Current Max: 20mA
- Contact Voltage DC Nom: 24V
- No. of Keys: 12
- Panel Cutout Width: 56.2mm
- Panel Cutout Height: 72mm
- SVHC: No SVHC (07-Jul-2017)
- Case Material: Plastic
- Colour: Black
- Contact Current DC: 20mA
- Contact Current DC Max: 20mA
- Contact Current Rating: 20mA
- Contact Resistance: 200ohm
- Contact Voltage DC Max: 24V
- External Depth: 72mm
- External Length / Height: 10mm
- External Width: 56.2mm
- Fixing Centres LxW: 51.2mm x 33.5mm
- Height: 72mm
- Height Max: 14mm
- IP / NEMA Rating: IP67
- Material: Plastic
- No. of Electrical Operations: 2000000
- No. of Mechanical Operations: 2000000
- Operating Force: 1.18N
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Storage Temperature Max: 65°C
- Storage Temperature Min: -40°C
- Switch Type: -
- Travel: 2mm
- Waterproofing: Water Proof
