MC14711 RES, 250R, 1%, 5W, AXIAL, WIREWOUND MULTICOMP PRO

MULTICOMP PROUGS :MC14711 Code de commande:1306685

Prix:
Prix ​​promotionnel€14,28

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (130 unité)

Documents et téléchargements

description

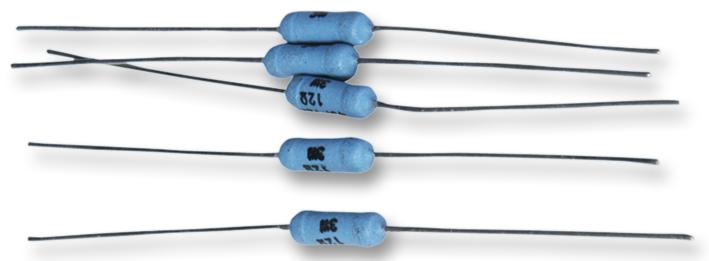

MULTICOMP PRO - MC14711 - Through Hole Resistor, 250 ohm, MC 1%, 5 W, ± 1%, Axial Leaded

  • Resistance: 250ohm
  • Product Range: MC 1% Series
  • Power Rating: 5W
  • Resistance Tolerance: ± 1%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: -
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 20ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (07-Jul-2017)
  • Body Diameter: 8.71mm
  • External Length / Height: 23.8mm
  • Lead Diameter: 1mm
  • Lead Length: 38.1mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 275°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +275°C
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 20ppm/°C
  • Temperature Coeff. -: 20ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
