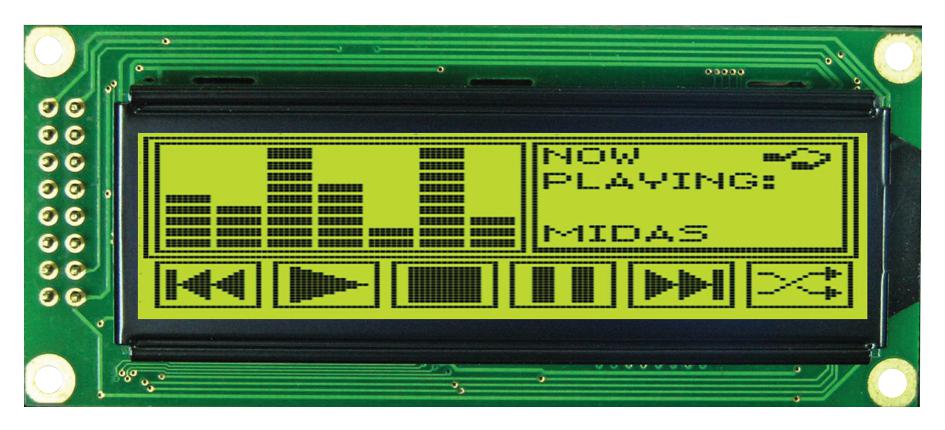

MIDAS - MC144032A6WC-SPTLY - Graphic LCD, 144 x 32, Black on Yellow / Green, 3V to 5V, Parallel, English, Chinese
- Resolution: 144 x 32
- Display Appearance: Black on Yellow / Green
- Logic Voltage: 3V to 5V
- Interface Type: Parallel
- Font Set: English, Chinese
- Display Mode: Transflective
- LCD Display Type: STN
- Module Size: 85mm x 36mm
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- Display Construction: COB
- Backlighting Colour: Yellow / Green LED
- Product Range: MC144032A6WC Series
- SVHC: No SVHC (15-Jan-2018)
