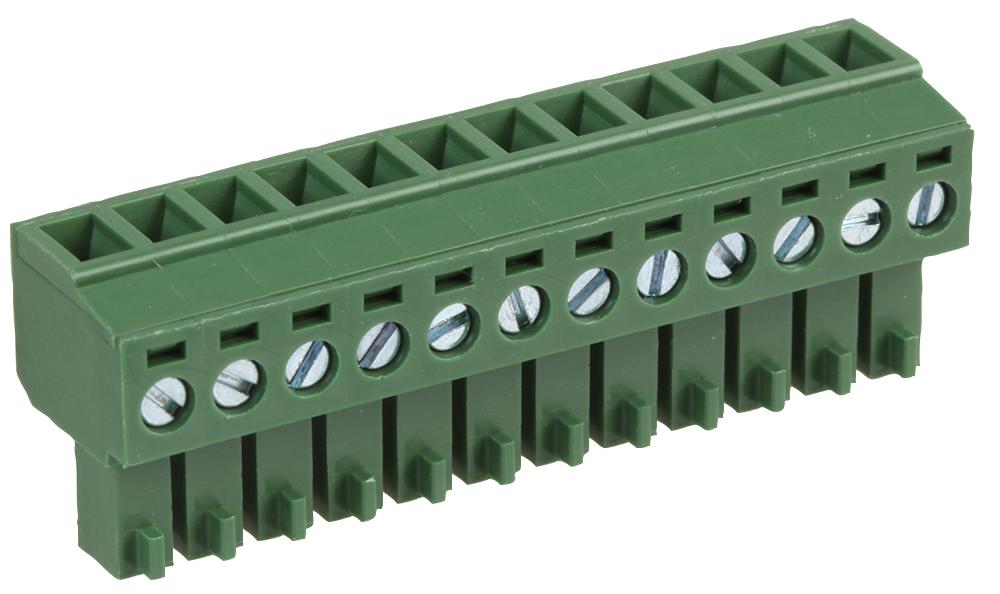

MULTICOMP PRO - MC000103 - Pluggable Terminal Block, 3.81 mm, 12 Ways, 26AWG to 16AWG, Screw, 10 A
- Pitch Spacing: 3.81mm
- No. of Positions: 12Ways
- Wire Size (AWG): 26AWG to 16AWG
- Conductor Area CSA: -
- Wire Connection Method: Screw
- Rated Current: 10A
- Rated Voltage: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: Cable Mount
- Connector Type: Terminal Block, Pluggable
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plated Contacts
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 26AWG
