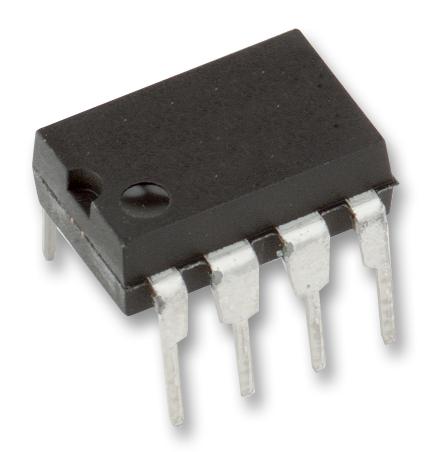

MAXIM INTEGRATED / ANALOG DEVICES - MAX690CPA+ - Supervisory Circuit, Active-Low Reset, 4.75V-5.5Vin, DIP-8
- Threshold Voltage: 4.65V
- No. of Supervisors / Monitors: 1Monitors
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.5V
- Reset Type: Active-Low
- Digital IC Case: DIP
- No. of Pins: 8Pins
- Delay Time: 50ms
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 690
- Clock Frequency: 250kHz
- IC Temperature Range: Commercial
- Logic Function Number: 690
- Microprocessor Support IC Type: Supervisory Circuit
- Operating Temperature Range: 0°C to +70°C
- Output Current Max: 20mA
- Supply Current: 3.5mA
- Supply Voltage Range: 4.75V to 5.5V
