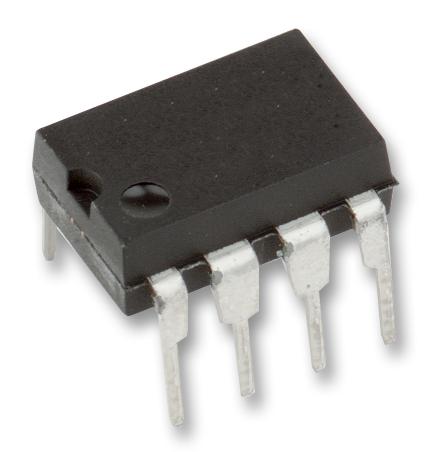

MAXIM INTEGRATED / ANALOG DEVICES - MAX664CPA+ - DC/DC Switching Regulator, Fixed, Adjustable, Inverting, Dual, 2V to 16.5VIn, -1.3V/40mAOut, DIP-8
- Fixed Output Voltage Nom.: -5V
- Adjustable Output Voltage Min: -4.75mV
- Adjustable Output Voltage Max: -5.25V
- Input Voltage Min: -2V
- Input Voltage Max: -16.5V
- Product Range: -5V 40mA LDO Voltage Regulators
- Output Current: 40mA
- Output Type: Fixed, Adjustable
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 70°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 664
- DC / DC Converter IC Case: DIP
- Dropout Voltage Vdo: 350mV
- IC Temperature Range: Commercial
- No. of Outputs: 2 Output
- No. of Outputs: 2Outputs
- Operating Temperature Range: 0°C to +70°C
- Operating Voltage Tolerance +: 5%
- Output Current - Output 1: 40mA
- Output Current - Output 2: 40mA
- Output Current Max: 0.004A
- Output Voltage: 5V
- Output Voltage - Output 1: -1.3V
- Output Voltage - Output 2: -1.3V
- Output Voltage Adjustable Range: 1.3V to 16V
- Output Voltage Max: -1.9V
- Output Voltage Min: -15V
- Primary Input Voltage: -9V
- Supply Voltage Max: -16.5V
