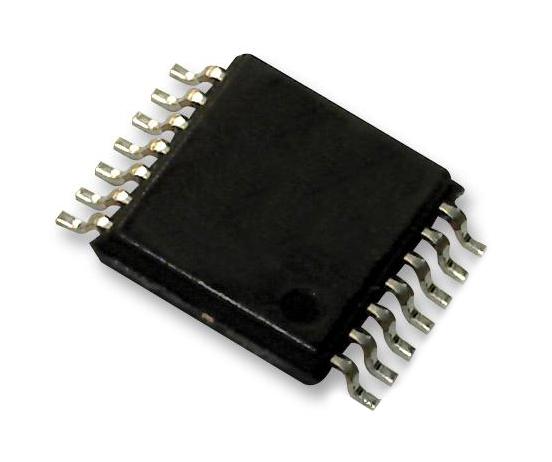

MAXIM INTEGRATED / ANALOG DEVICES - MAX4410EUD+ - Audio Power Amplifier, 80 mW, AB, 2 Channel, 1.8V to 3.6V, TSSOP, 14 Pins
- Output Power: 80mW
- Amplifier Class: AB
- No. of Channels: 2 Channel
- Supply Voltage Range: 1.8V to 3.6V
- Amplifier Case Style: TSSOP
- No. of Pins: 14Pins
- Load Impedance: 16ohm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- MSL: MSL 1 - Unlimited
- Amplifer Supply Voltage: 1.8V to 3.6V
- Audio Power Amplifier Type: Class AB
- Bandwidth: 22kHz
- Base Number: 4410
- Gain Bandwidth: 22kHz
- Input Offset Voltage Max: 2.4mV
- Load Impedance Min: 16ohm
- No. of Amplifiers: 1Amplifiers
- No. of Channels: 2Channels
- Operating Temperature Range: -40°C to +85°C
- Output Power (Pout): 65mW @ 32ohm
- Power Rating RMS: 80mW
- Slew Rate: 0.8V/µs
- Supply Current: 7mA
- Supply Voltage + Nom: 3.6V
- Supply Voltage Max: 3.6V
- Supply Voltage Min: 1.8V
- THD + N: 0.003% @ 50mW, 16ohm, VDD=3V
- Termination Type: Surface Mount Device
