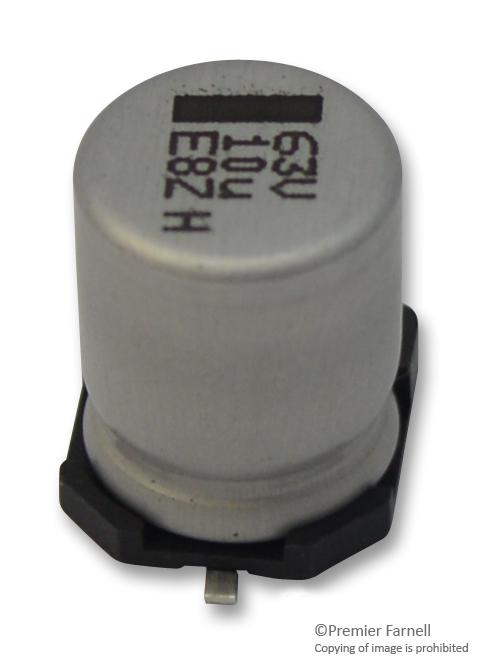

VISHAY - MAL214097802E3 - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 68 µF, 63 V, 1500 hours @ 125°C, Polar
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 68µF
- Voltage Rating: 63V
- ESR: -
- Product Range: 158 CRH Series
- Lifetime @ Temperature: 1500 hours @ 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Ripple Current AC: 255mA
- Diameter: 10mm
- Height: 14mm
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 255mA
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- External Depth: 10mm
- External Length / Height: 14mm
- External Width: 10mm
- Leakage Current: 43µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Operating life Time: 1500h
- Ripple Current Temperature: 125°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 63V
- Voltage Rating V DC: 63V
