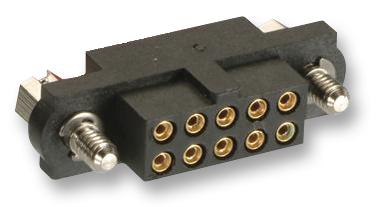

HARWIN - M80-4611242 - Rectangular Connector, Dual in Line, Datamate J-Tek M80, 12 Contacts, Receptacle, 2 mm, Crimp
- Pitch Spacing: 2mm
- No. of Contacts: 12Contacts
- Gender: Receptacle
- Product Range: M80 Series
- Contact Termination Type: Crimp
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Beryllium Copper
- SVHC: Lead (15-Jan-2019)
- Colour: Black
- Contact Resistance: 25mohm
- Flammability Rating: UL94V-0
- Insulation Resistance: 100Mohm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Wire Size AWG Max: 24AWG
- Wire Size AWG Min: 28AWG
- Working Voltage: 120V
