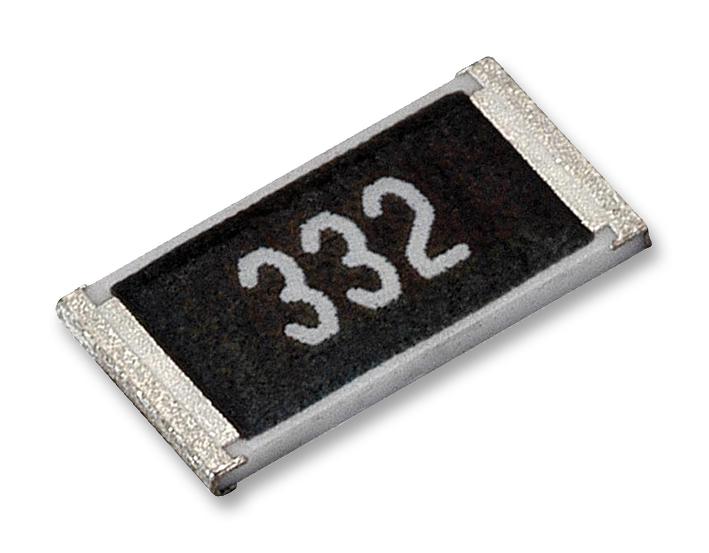

TT ELECTRONICS / WELWYN - LR1206-R10FW - SMD Chip Resistor, 0.1 ohm, ± 1%, 500 mW, 1206 [3216 Metric], Thick Film, General Purpose
- Resistor Case Style: 1206 [3216 Metric]
- Resistance: 0.1ohm
- Product Range: LR Series
- Voltage Rating: 200V
- Resistor Element Material: Thick Film
- Power Rating: 500mW
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 3.2mm
- External Length / Height: 0.8mm
- External Width: 1.63mm
- Full Power Rating Temperature: 40°C
- No. of Pins: 2Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pack Quantity: 1
- Reel Quantity: 3000
- Resistor Mounting: Surface Mount Device
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 200V
