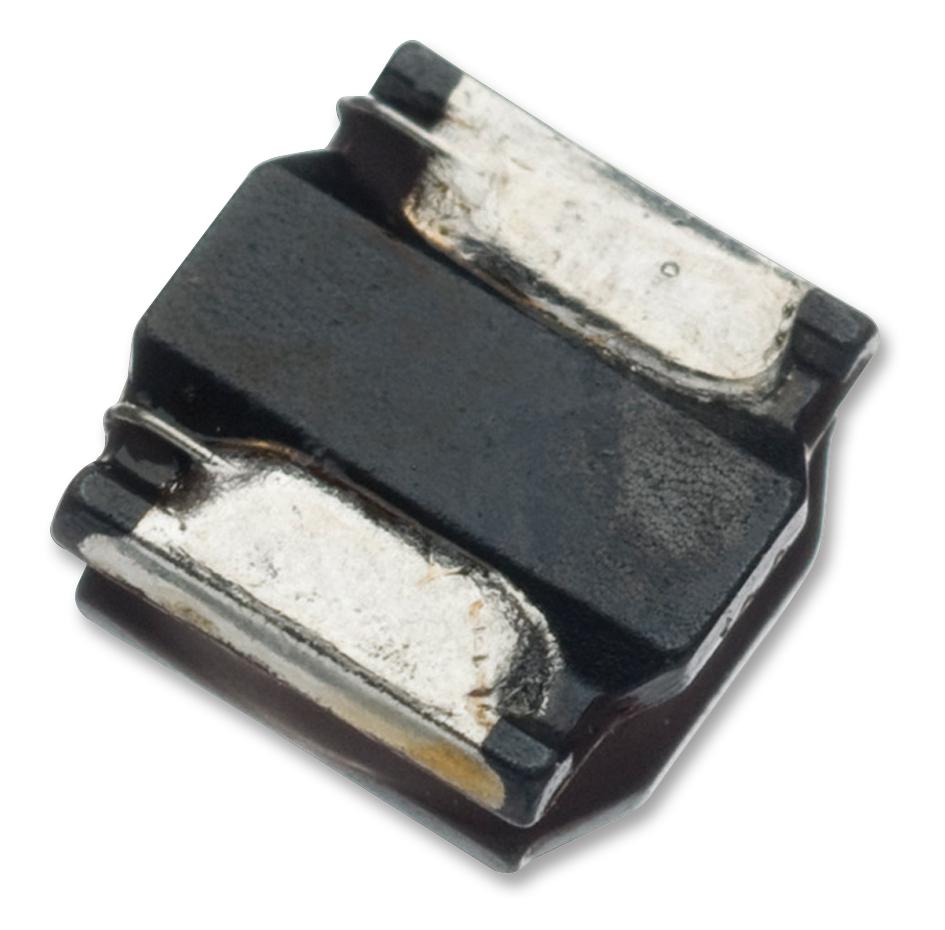

MURATA - LQH32PN3R3NNCL - Wirewound Inductor, 3.3 µH, 0.1 ohm, 50 MHz, 1.55 A, 1210 [3225 Metric], LQH32P_NC
- Inductance: 3.3µH
- Product Range: LQH32P_NC Series
- DC Current Rating: 1.55A
- High Frequency Inductor Case: 1210 [3225 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.1ohm
- Inductance Tolerance: ± 30%
- Self Resonant Frequency Min: 50MHz
- SVHC: No SVHC (15-Jan-2019)
- Inductor Case Style: 1210 [3225 Metric]
