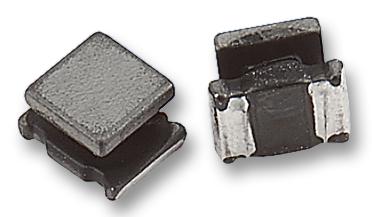

MURATA - LQH32MN3R3K23L - Wirewound Inductor, 3.3 µH, 1 ohm, 38 MHz, 300 mA, 1210 [3225 Metric], LQH
- Inductance: 3.3µH
- Product Range: -
- DC Current Rating: 300mA
- High Frequency Inductor Case: 1210 [3225 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 1ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 38MHz
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 2mm
- External Length / Height: 3.2mm
- External Width: 2.5mm
- Inductor Case Style: 1210 [3225 Metric]
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
